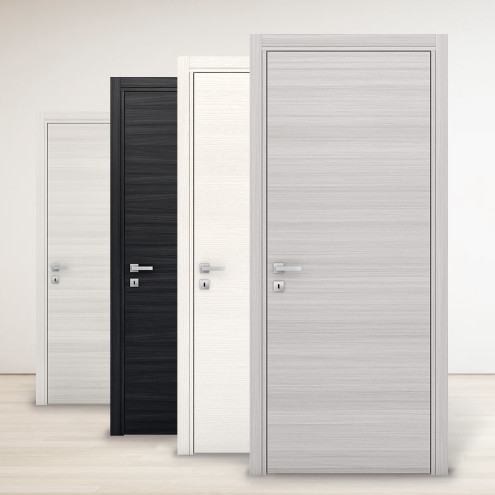

Braga Interior Doors
$550.00 – $709.00
Best Finishing Colors

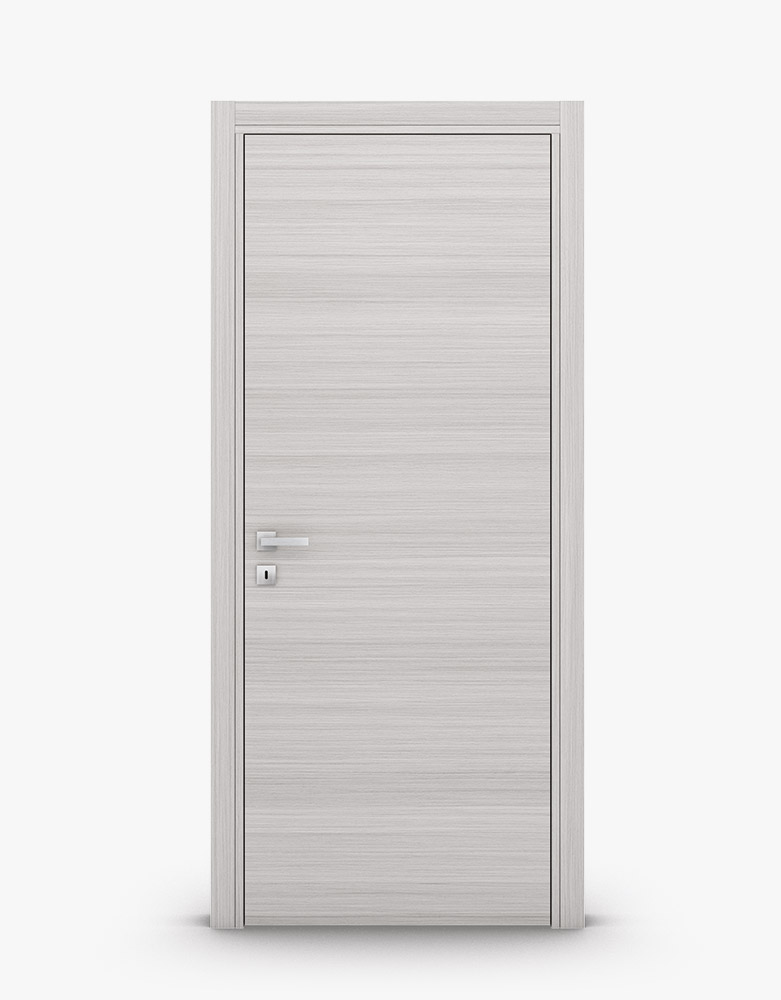

PALISSANDRO SMOKE

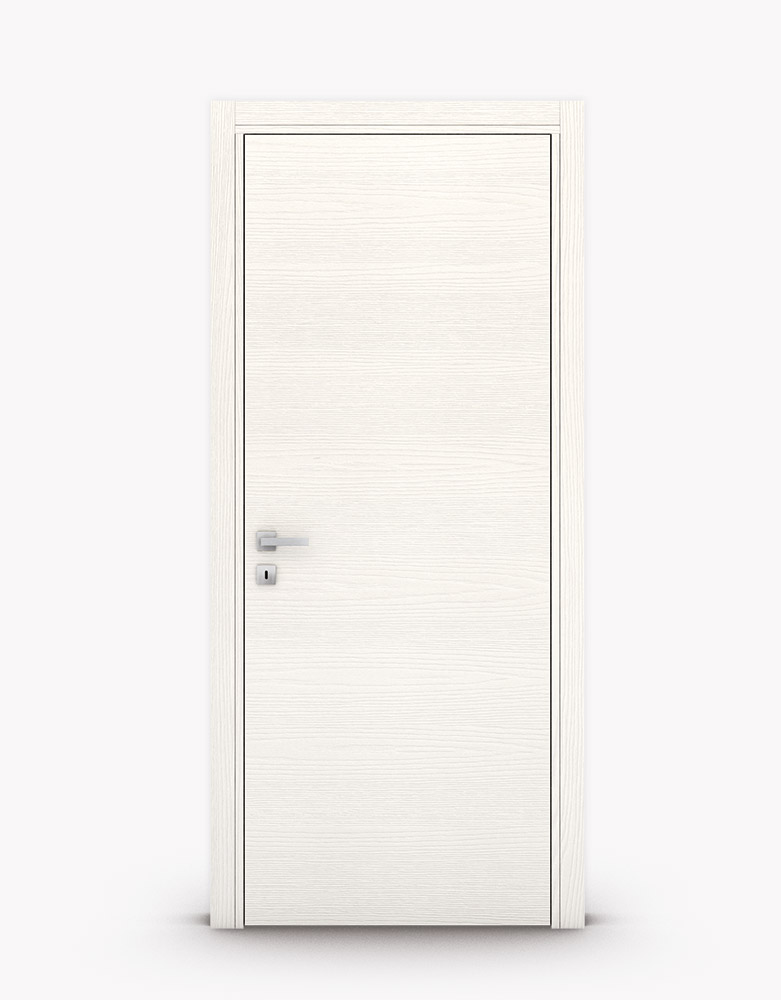

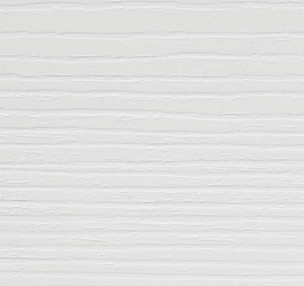

BIANCO AZIMUT

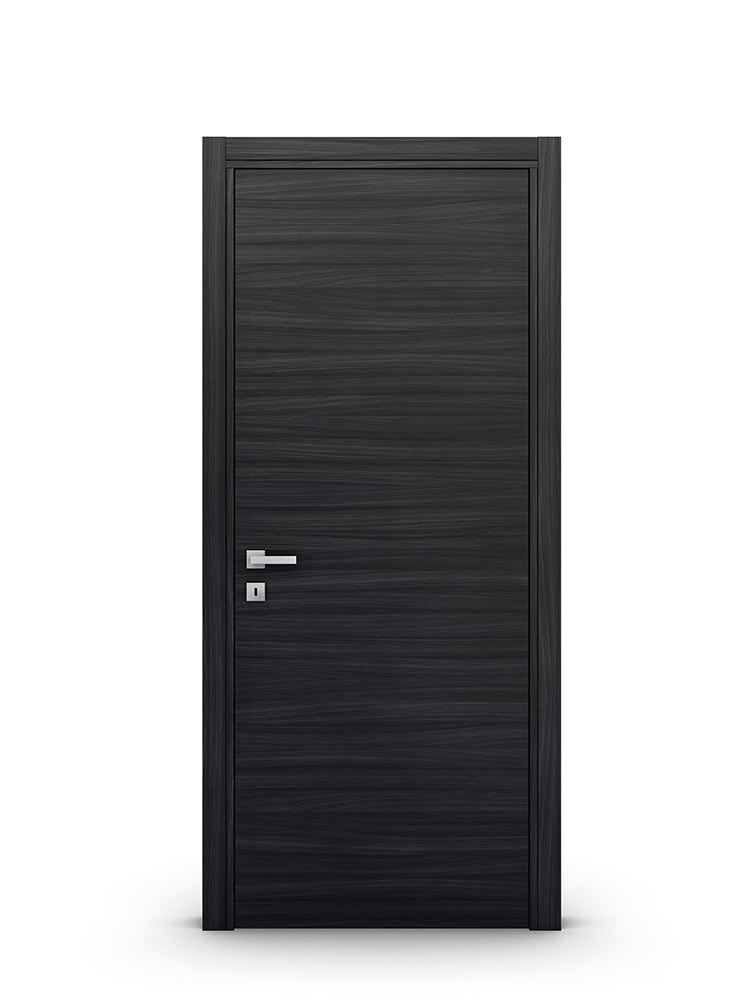

PALISSANDRO BLU

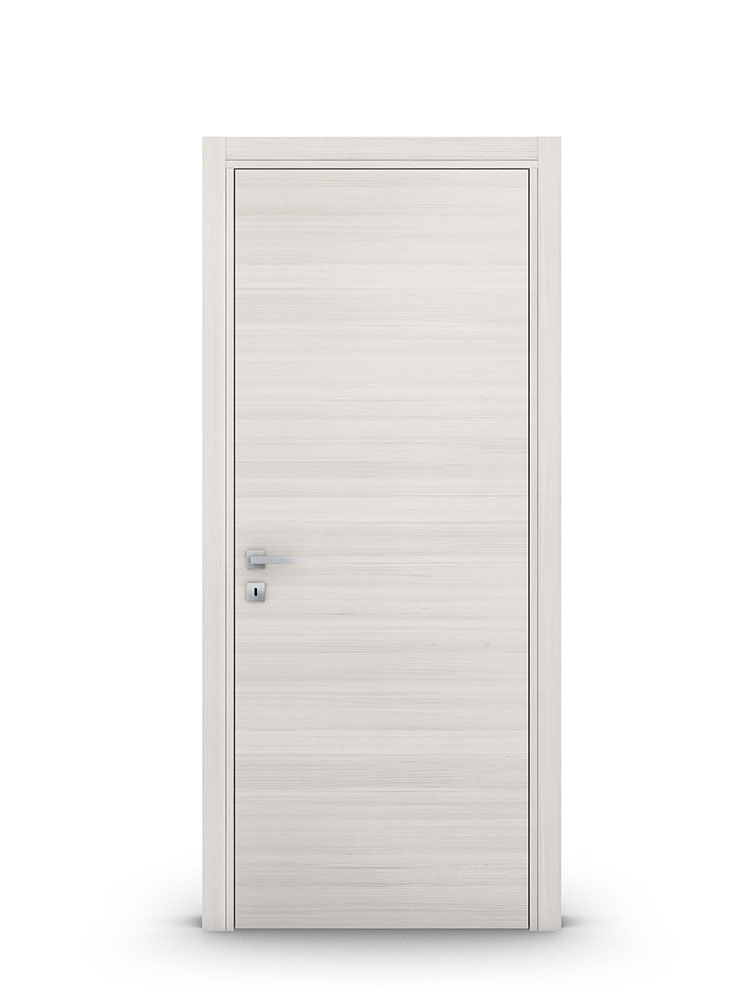

PALISSANDRO BIANCO
One Door Complectation

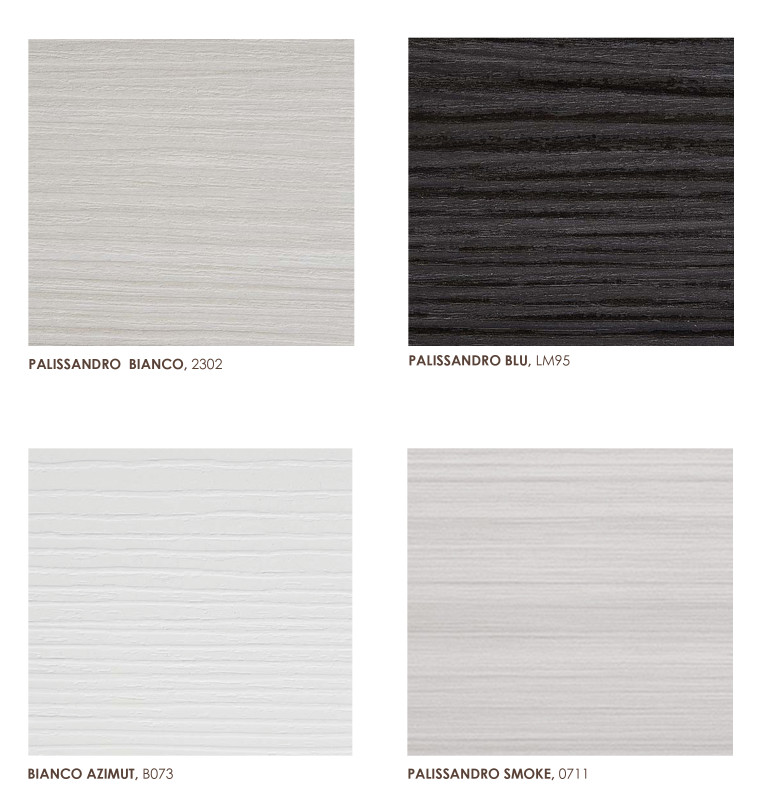

FINISHING
Palissandro Smoke, 0711
Bianco Azimut, B073
Palissandro Blu , LM95
Palissandro Bianco, 2302
Size - 28 or 30 inches width.
FRAMES x 3
Left, Top and Right
CONCEALED HINGES x 2
Adjustable on 3 axes, chrome finishing

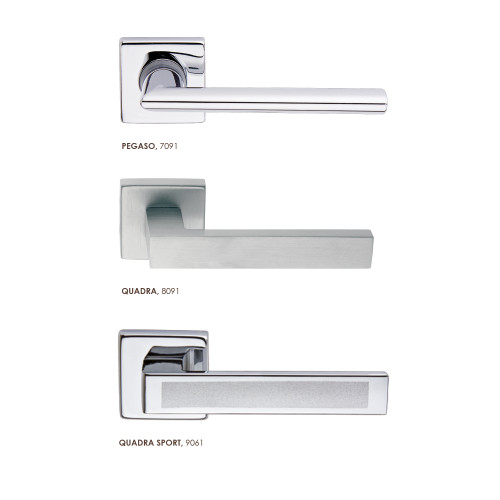

HANDLES x 2
3 Options:
- Pegaso
- Quadra
- Quadra Sport
DOOR LOCK x 1
2 Options:
- Magnetic Lock with Thumb-Turn
- Magnetic Lock with 3 Keys
TOTAL PRICE: $709.00
* Total price includes any option door
** Please pay attention, shipping price is not included and should be specified before order. Please send a request to specify shipping price estimate.
Well Tested & Certified Interior Doors
 |
UL USA/ CANADA Special purpose fire door and frame assembly |
|
British Standard test for fire rated doors |
 |
EI60, EI90 and EI120 fire rated doors certification. |  |
Italian approval for fire rated doors |
 |
Dump Heat Test |  |
Change Temperature Test |
 |
“Biolife Panel” BRAGAPAN produced in accordance with formaldehyde emission limits under CARB Phase 2 and TSCA Title VI regulations available on request. |
 |
Request FSC® certified products |
 |
Request PEFC™ certified products |
FROM MANUFACTURER
“ The wood used to make our products, in nature, is substituted by planting new trees and the processing scraps of virgin wood, without glues or foreign agents, are used both as an alternative source for the production of heat and as a raw material for the production of biofuel (pellets). ”

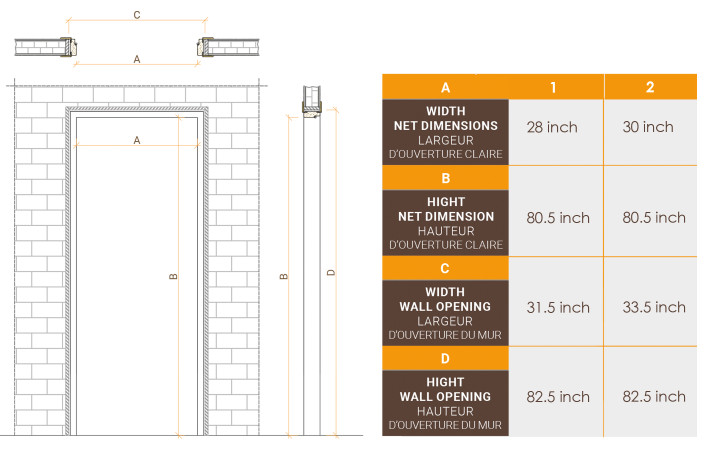

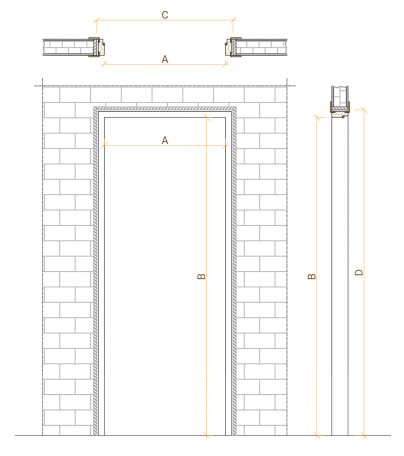

Door Sizes
| DIMENSIONS | SIZE 1 | SIZE 2 | |
|---|---|---|---|
|
A |
WIDTH
NET DIMENSION |
28 INCH |
30 INCH |
|
B |
HIGHT
NET DIMENSION |
80.5 INCH |
80.5 INCH |
|
C |
WIDTH
WALL OPENING |
31.5 INCH |
33.5 INCH |
|
D |
HIGHT
WALL OPENING |
82.5 INCH |
82.5 INCH |

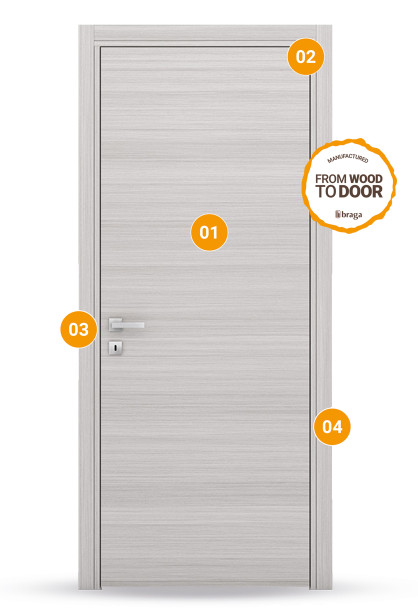

DOOR FEATURES

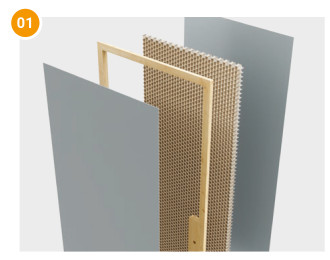

01 DOOR PANEL
Door panel, thickness 44 mm., made with perimetral profile in finger-joint fir; honeycomb inside; nr. 2 HDF hydro 4 mm. skin covered with CPL; edged on 3 sides in the same colour; moisture protection film on the bottom.
02 FRAME AND ARCHITRAVES
Frame radius 3, thickness 40 mm., standard width 117 mm. with blockboard support and architraves 90x10 wing20 push side + 65x10 wing20 pull side with multilayer support. CPL covering with polyurethane gluing and PU anti-noise gasket on the frames. Moisture protection film on the bottom.
03 LOCK
“MAGNETIC” lock with key hole or Thumb-Turn, chromed finishing. Adjustable counterplate. It closes automatically using magnets.
04 HINGES
Concealed hinges, adjustable on 3 axes (nr. 2 each door), chromed finishing.

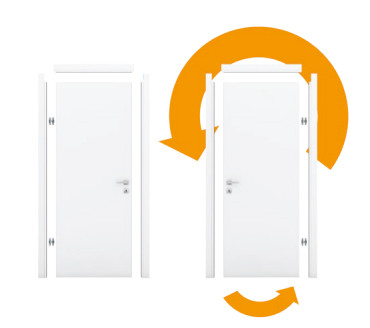

REVER SYSTEM
The practical REVER SYSTEM allows you to transform an opening right push door into an opening left push door by simply turning jambs upside down and rotating leaf at 180°.

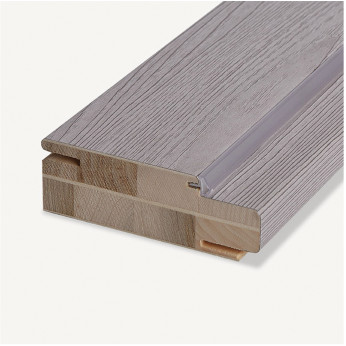

ADJUSTABLE FRAME
Frame construction allows to adjust it while installation.
Specification: Braga Interior Doors
|
